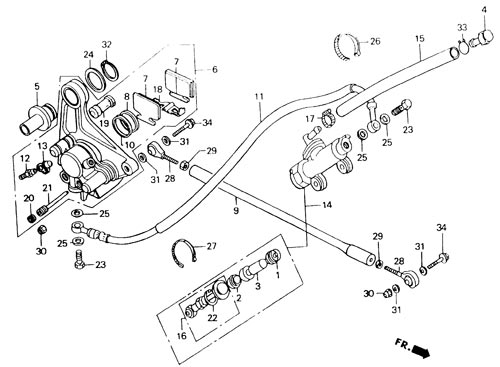

F-9 REAR BRAKE/REAR MASTER CYLINDER

F-9 REAR BRAKE/REAR MASTER CYLINDER
NO Part No Description Reqd No PRICE NOTES
93 94
1 04601-ND5-760 CUP, PRIMARY 1 1 ¥370 -
2 04602-ND5-760 CUP, SECONDARY 1 1 ¥370 -
3 04603-NF4-770 PISTON, REAR 1 1 ¥1,560 -
4 17370-419-700 PLUG, BREATHER TUBE 1 1 ¥145 -
5 42305-NF4-750 COLLAR, CALIPER BRACKET 1 1 ¥1,250 -
6 43100-NF5-611 CALIPER ASSY, REAR 1 1 ¥17,500 -
7 43105-NF5-611 PAD COMP 2 2 ¥2,000 -
8 43109-MA3-006 DUST-SEAL 1 1 ¥210 -
9 43111-NF4-750 ROD, REAR BRAKE TORQUE 1 1 ¥2,390 -
10 43209-MA3-006 SEAL, PISTON 1 1 ¥215 -
11 43310-NF4-781 HOSE, REAR BRAKE 1 1 ¥1,460 -
12 43352-568-003 SCREW, BLEEDER 1 1 ¥205 -
13 43353-461-771 CAP, BLEEDER 1 1 ¥150 -
14 43500-NF4-770 MASTER CYLINDER ASSY., REAR. 1 1 ¥10,300 -
15 43503-NF4-000 V-TUBE, 9*13*240 1 1 ¥110 -
16 43504-NF4-770 ROD ASSY 1 1 ¥2,700 -
17 43541-ND5-750 CLAMP 1 1 ¥250 -
18 45108-GM9-741 PAD SPRING 1 1 ¥280 -
19 45133-MA3-006 BOOT, B 1 1 ¥185 -
20 45203-MG3-016 PLUT, PIN 1 1 ¥155 -
21 45215-GE2-006 ( 45215-GE2-016 ) - - - It changed
45215-GE2-016 HANGER PIN 2 2 ¥330 -
22 46182-500-013 CIRCLIP, MASTER CYLINDER 1 1 ¥105 -
23 90145-MS9-611 ( 90145-MS9-612 ) - - - It changed
90145-MS9-612 OIL BOLT, 10*22 2 2 ¥300 -
24 90475-425-000 WASHER, THRUST, 30mm 1 1 ¥155 -
25 90601-ZE1-000 WASHER, PLUG DRAIN, 10mm 4 4 ¥50 -
26 90651-NC8-000 TY-LAP, 3.6*281 1 1 ¥110 -
27 90652-ND5-000 TY-LAP, 2.4*92 1 1 ¥60 -
28 91048-NC5-000 ROD END, 8mm 2 2 ¥1,350 -
29 94002-08000-0S NUT, HEX, 8mm 2 2 ¥30 -
30 94050-08000 NUT, FLANGE, 8mm 2 2 ¥35 -
31 94102-08000 WASHER, PLAIN, 8mm 4 4 ¥25 -
32 94510-30000 CIRCLIP, EXTERNAL, 30 1 1 ¥55 -
33 95002-02120 CLIP, B12, TUBE 1 1 ¥35 -
34 95801-08035-00 BOLT, FLANGE, 8*35 2 2 ¥50 -
