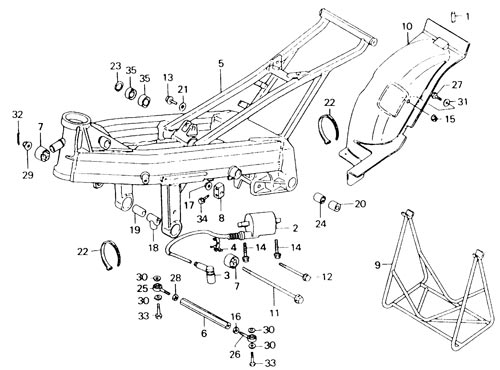

F-12 IGNITION COIL/FRAME BODY
|
|
F-12 IGNITION COIL/FRAME BODY
|
| NO |
Part No |
Description |
Reqd No |
PRICE |
NOTES |
| 93 |
94 |
| 1 |
17521-HA7-670 |
RUBBER,PROTECTOR |
1 |
1 |
¥135 |
- |
| 2 |
30500-NF4-651 |
(30500-NF4-901 ) |
1 |
- |
- |
It changed |
| |
30500-NF4-901 |
COIL, IGNITION |
- |
1 |
¥4,060 |
- |
| 3 |
30700-KM9-163 |
(30700-NX4-000 ) |
- |
- |
- |
It changed |
| |
30700-NX4-000 |
CAP ASSY., NOISE SUPPESSOR |
1 |
1 |
¥1,050 |
- |
| 4 |
32114-NF4-650 |
CLIP, HIGH TENSION CORD |
1 |
1 |
¥160 |
- |
| 5 |
50100-NF4-650 |
FRAME BODY COMP |
1 |
1 |
¥122,000 |
- |
| 6 |
50184-NF4-750 |
ROD, ENGINE TORQUE |
1 |
1 |
¥1,250 |
- |
| 7 |
50200-NF4-000 |
MOUNT A COMP., ENGINE |
2 |
2 |
¥1,560 |
- |
| 8 |
50258-NF4-000 |
ENGINE HANGER, REAR |
1 |
1 |
¥840 |
- |
| 9 |
50500-ND4-750 |
MAIN STAND |
1 |
1 |
¥4,160 |
- |
| 10 |
80100-NF4-760 |
FENDER, REAR |
1 |
1 |
¥4,680 |
- |
| 11 |
90103-NF4-000 |
BOLT, FLANGE, 10*247 |
1 |
1 |
¥320 |
- |
| 12 |
90117-NF4-780 |
BOLT, FLANGE, 10*135 |
1 |
1 |
¥530 |
- |
| 13 |
90134-ND5-000 |
BOLT, FLANGE, 6*10 |
1 |
1 |
¥60 |
- |
| 14 |
90197-MN5-000 |
BOLT, FLANGE, 5*20 |
2 |
2 |
¥80 |
- |
| 15 |
90301-MG8-000 |
NUT, FLANGE, 5mm |
2 |
2 |
¥125 |
- |
| 16 |
90302-NF4-000 |
NUT, L, 8mm |
1 |
1 |
¥210 |
- |
| 17 |
90304-GA6-003 |
NUT, AXLE |
1 |
1 |
¥125 |
- |
| 18 |
90501-NF4-750 |
COLLAR, 20*10*51 |
1 |
1 |
¥740 |
- |
| 19 |
90502-NF4-760 |
COLLAR, 20*10*34 |
1 |
1 |
¥470 |
- |
| 20 |
90506-NF4-000 |
COLLAR, BEARING NEEDLE |
1 |
1 |
¥740 |
- |
| 21 |
90543-273-000 |
PACKING, FRONT FORK DRAIN COCK |
1 |
1 |
¥90 |
- |
| 22 |
90651-NC8-000 |
TY-LAP, 3.6*281 |
2 |
2 |
¥110 |
- |
| 23 |
90652-NF4-000 |
CIRCLIP, INTERNAL, 35 |
1 |
1 |
¥220 |
- |
| 24 |
91053-NF4-000 |
BEARING, NEEDLE |
1 |
1 |
¥1,040 |
- |
| 25 |
91055-NF4-000 |
ROD END A, ENGINE TORQUE |
1 |
1 |
¥1,250 |
- |
| 26 |
91056-NF4-000 |
ROD END B, ENGINE TORQUE |
1 |
1 |
¥1,250 |
- |
| 27 |
92101-05028-0A |
BOLT, HEX.,5*28 |
2 |
2 |
¥30 |
- |
| 28 |
94002-08000-0S |
NUT, HEX., 8mm |
1 |
1 |
¥30 |
- |
| 29 |
94012-10000-0S |
NUT, CASTLE, 10mm |
1 |
1 |
¥55 |
- |
| 30 |
94102-08000 |
WASHER, PLAIN, 8mm |
4 |
4 |
¥25 |
- |
| 31 |
94103-05800 |
WASHER, PLAIN, 5mm |
2 |
2 |
¥25 |
- |
| 32 |
94201-25200 |
PIN, SPLIT, 2.5*20 |
1 |
1 |
¥25 |
- |
| 33 |
95801-08028-00 |
BOLT, FLANGE, 8*28 |
2 |
2 |
¥50 |
- |
| 34 |
95801-08045-00 |
BOLT, FLANGE, 8*45 |
2 |
2 |
¥55 |
- |
| 35 |
96150-60030-10 |
BEARING, BALL, RADIAL,6003 |
2 |
2 |
¥610 |
- |
|
