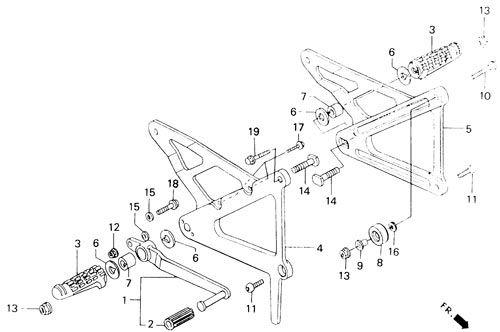

F-10 STEP/BRAKE PEDAL

F-10 STEP/BRAKE PEDAL

NO Part No Description Reqd No PRICE NOTES
93 94
1 46500-NF4-780 PEDAL COMP., BRAKE 1 1 ¥9,500 -
2 46501-ND4-750 RUBBER, PEDAL 1 1 ¥380 -
3 50611-NF4-770 ARM, STEP 2 2 ¥5,300 -
4 50630-NF4-770 HOLDER, R., STEP 1 1 ¥5,510 -
5 50640-NF4-770 HOLDER, L., STEP 1 1 ¥5,720 -
6 50642-NF4-770 WASHER, 8.2mm 4 4 ¥210 -
7 50643-NF4-770 COLLAR, 16*8.2 2 2 ¥530 -
8 52158-HB5-003 ROLLER, CHAIN 1 1 ¥710 -
9 52159-467-000 COLLAR, CHAIN ROLLER 1 1 ¥330 -
10 90113-HB3-000 BOLT, FLANGE, DR, 8*62 1 1 ¥145 -
11 90178-NC8-000 SCREW, 8*22 2 2 ¥300 -
12 90301-473-003 NUT., 6mm 1 1 ¥210 -
13 90309-428-731 NUT, FLANGE, 8mm 3 3 ¥185 -
14 90510-NF4-770 BOLT, M. STEP 2 2 ¥210 -
15 94101-06000 WASHER, PLAIN, 6mm 2 2 ¥25 -
16 94102-08000 WASHER, PLAIN, 8mm 1 1 ¥25 -
17 95801-06022-00 ( 95701-06022-00 ) - - - It changed
  95701-06022-00 BOLT, FLANGE, 6*22 2 2 ¥40
18 95801-06025-00 BOLT, FLANGE, 6*25 1 1 ¥40 -
19 95801-08025-00 BOLT, FLANGE, 8*25 1 1 ¥50 -
