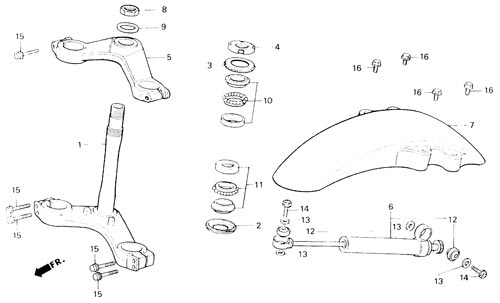

F-2 STEERING STEM/STEERING DAMPER/FRONT FENDER

F-2 STEERING STEM/STEERING DAMPER/FRONT FENDER
NO Part No Description Reqd No PRICE NOTES
93 94
1 53200-NF4-770 STEM COMP STEERING 35 1 - ¥26,800 -
　 53200-NF4-900 STEM COMP STEERING 35 - 1 ¥26,800 -
2 53214-371-010 DUST-SEAL STEERING HEAD 1 1 ¥450 -
3 53214-430-003 DUST-SEAL STEERING HEAD 1 1 ¥360 -
4 53229-KN5-650 THREAD STEERING (HEAD TOP) 1 1 ¥750 -
5 53230-NF4-770 BRIDGE FORK TOP 35 1 1 ¥18,500 -
6 53700-NF4-771 ( 53700-NF4-900 ) - - - It changed
　 53700-NF4-900 DANPER ASSY STEERING 1 1 ¥12,500 -
7 61100-NF4-610 FENDER COMP FRONT 1 1 ¥7,900 -
8 90304-KA3-710 NUT STEERING STEM 1 1 ¥570 -
9 90503-428-870 WASHER STEERING STEM 1 1 ¥170 -
10 91053-ND9-000 BEARING HEAD PIPE UP 1 1 ¥960 -
11 91054-ND6-700 BEARING HEAD PIPE LOWER 1 1 ¥1,770 -
12 91060-NL0-003 BEARING SPHERICAL 8mm 2 2 ¥3,120 -
13 94102-08000 WASHER PLAIN 8mm 4 4 ¥25 -
14 95301-08032-00 BOLT HEX 8*32 2 2 ¥40 -
15 95801-08035-00 BOLT FLANGE 8*35 6 6 ¥50 -
16 96001-06018-00 BOLT FLANGE SH 6*18 4 4 ¥40 -
