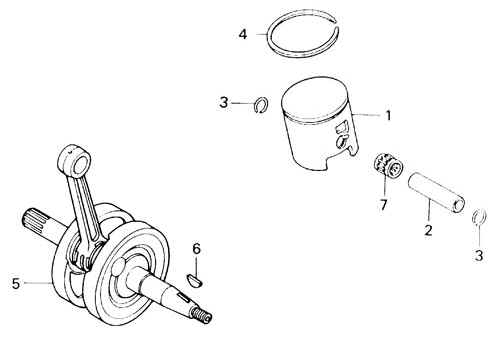

E-7 PISTON CRANKSHAFT

E-7 PISTON CRANKSHAFT
NO Part No Description Regd No PRICE NOTES
93 94
1 13100-NF4-900 PISTON COMP 1 1 ¥5,300 -
2 13111-NF4-780 ( 13111-NF4-900 ) - -

-

 It changed
　 13111-NF4-900 PIN PISTON 1 1 ¥600 -
3 13112-ML0-720 CLIP PISTON PIN 14mm 2 2 ¥75 -
4 13121-NF4-651 ( 13121-NX5-701 ) - -

-

 It changed
　 13121-NX5-701 RING PISTON 1 1 ¥1,260 -
5 13300-NF4-650 ( 13300-NF4-900 ) - -

-

 It changed
　 13300-NF4-900 CRANKSHAFT COMP 1 1 ¥22,100 -
6 13331-360-000 KEY SPECIAL WOODRUFF 25*14 1 1 ¥190 -
7 91008-NF5-761 ( 91008-NF4-901 ) - -

-

 It changed
　 91008-NF4-901 BEARING CON-ROD SMALL END 1 1 ¥740 -
