1993/1994 RS125R

 [Parts list top][RS125R top]

[E-1][E-2][E-3][E-4][E-5][E-6][E-7][E-8][E-9][E-10]
[F-1][F-2][F-3][F-4][F-5-93][F-5-94][F-6][F-7][F-8][F-9][F-10][F-11][F-12][F-13][F-14]

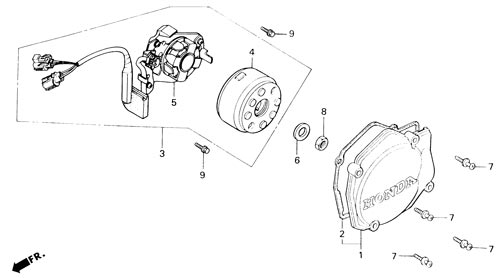

E-2 L CRANKCASE COVER

E-2 L CRANKCASE COVER
NO Part No Description Reqd No PRICE NOTES
93 94
1 11350-KS6-701 COVER ASSY L CASE 1 1 ¥2,300 -
2 11352-KS6-700 SEAL L COVER 1 1 ¥300 -
3 31100-NF4-651 A C GENERATOR ASSY 1 - ¥33,100 -
　 31100-NF4-901 A C GENERATOR ASSY - 1 ¥33,100 -
4 31110-NF4-781 FLYWHEEL COMP 1 - ¥7,700 -
　 31110-NF4-901 FLYWHEEL COMP - 1 ¥7,700 -
5 31120-NF4-651 STATOR COMP 1 - ¥26,300 -
　 31120-NF4-901 STATOR COMP - 1 ¥26,300 -
6 90437-NF5-710 WASHER PLAIN 12mm 1 1 ¥380 -
7 93891-06025-07 SCREW WASHER 6*25 4 4 ¥40 -
8 94001-12200-0S NUT HEX 12mm 1 1 ¥40 -
9 96300-06018-00 BOLT FLANGE DR 6*18 2 2 ¥40 -
