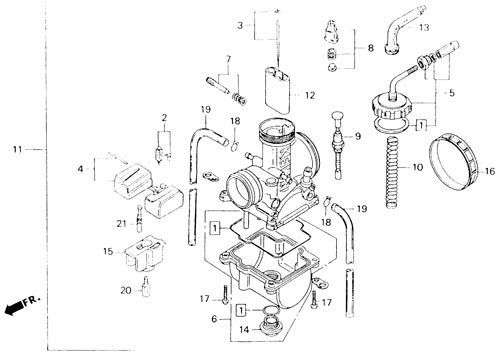

E-10 CARBURETOR

E-10 CARBURETOR

NO Part No Description Reqd No

PRICE

NOTES
93 94
1 16010-KA5-691 GASKET SET 1 1 ¥1,250 -
2 16011-KA3-741 ( 16011-HA2-671 ) - -

-

It changed
  16011-HA2-671 FLOAT VALVE SET 1 1 ¥1,700 -
3 16012-NF4-650 NEEDLE SET JET (R1469JA) 1 (1) ¥740 -
  16201-NF4-650 NEEDLE SET JET (R1465JA) (1) (1) ¥740 -
  16202-NF4-650 NEEDLE SET JET (R1466JA) (1) (1) ¥740 -
  16203-NF4-650 NEEDLE SET JET (R1467JA) (1) (1) ¥740 -
  16204-NF4-650 NEEDLE SET JET (R1468JA) (1) (1) ¥740 -
  16205-NF4-650 NEEDLE SET JET (R1470JA) (1) (1) ¥740 -
  16206-NF4-650 NEEDLE SET JET (R1471JA) (1) (1) ¥740 -
  16207-NF4-650 NEEDLE SET JET (R1472JA) (1) (1) ¥740 -
4 16013-KA3-741 FLOAT SET 1 1 ¥1,950 -
5 16014-NF4-781 TOP SET 1 1 ¥530 -
6 16015-NF4-003 CHAMBER SET FLOAT 1 1 ¥4,160 -
7 16016-HA2-004 SCREW SET A 1 1 ¥880 -
8 16037-NF4-780 SPRING SET THROTTLE 1 1 ¥750 -
9 16046-NF5-751 VALVE SET STARTER 1 1 ¥1,770 -
10 16050-KA5-691 SPRING COMPRESSION COIL 1 1 ¥520 -
11 16100-NF4-651 CARBURETOR ASSY 1 - ¥24,500 -
  16100-NF4-900 CARBURETOR ASSY - 1 ¥24,500 -
12 16111-ND5-761 ( 16111-NF4-900 ) - - - It changed
  16111-NF4-900 VALVE THROTTLE #5.0 1 1 ¥3,000 -
  16112-NF5-710 VALVE THROTTLE #4.5 (1) - ¥3,000 -
  16112-NF4-900 VALVE THROTTLE #4.5 - (1) ¥3,000 -
  16113-NF5-710 VALVE THROTTLE #5.5 (1) - ¥3,000 -
  16113-NF4-900 VALVE THROTTLE #5.5 - (1) ¥3,000 -
13 16118-121-014 CAP CABLE SEALING 1 1 ¥220 -
14 16162-ND4-751 DRAIN BOLT 1 1 ¥190 -
15 16185-KA3-761 PLATE BUFFER 1 1 ¥430 -
16 16196-ND5-761 CAP RUBBER 1 1 ¥530 -
17 93892-04016-18 ( 93892-0401608 ) - - - It changed
  93892-04016-08 SCREW WASHER 4mm 4 4 ¥30 -
18 95002-02070 CLIP B7 TUBE 2 2 ¥30 -
19 95003-07120-31 TUBE 2 2 ¥180 -
20 99101-357-1500 JET MAIN #150 (1) (1) ¥450 -
  99101-357-1520 JET MAIN #152 (1) (1) ¥450 -
  99101-357-1550 JET MAIN #155 (1) (1) ¥450 -
  99101-357-1580 JET MAIN #158 (1) (1) ¥450 -
  99101-357-1600 JET MAIN #160 (1) (1) ¥450 -
  99101-357-1620 JET MAIN #162 (1) (1) ¥450 -
  99101-357-1650 JET MAIN #165 (1) (1) ¥450 -
  99101-357-1680 JET MAIN #168 (1) (1) ¥450 -
  99101-357-1700 JET MAIN #170 (1) (1) ¥450 -
  99101-357-1720 JET MAIN #172 (1) (1) ¥450 -
  99101-357-1750 JET MAIN #175 (1) (1) ¥450 -
  99101-357-1780 JET MAIN #178 (1) (1) ¥450 -
  99101-357-1800 JET MAIN #180 (1) (1) ¥450 -
  99101-357-1820 JET MAIN #182 (1) (1) ¥450 -
  99101-357-1850 JET MAIN #185 (1) (1) ¥450 -
  99101-357-1880 JET MAIN #188 1 (1) ¥450 -
  99101-357-1900 JET MAIN #190 (1) 1 ¥450 -
  99101-357-1920 JET MAIN #192 (1) (1) ¥450 -
  99101-357-1950 JET MAIN #195 (1) (1) ¥450 -
  99101-357-1980 JET MAIN #198 (1) (1) ¥450 -
  99101-357-2000 JET MAIN #200 (1) (1) ¥450 -
21 99103-437-0450 JET SLOW #45 (1) (1) ¥440 -
  99103-437-0480 JET SLOW #48 1 1 ¥440 -
  99103-437-0500 JET SLOW #50 (1) (1) ¥440 -
