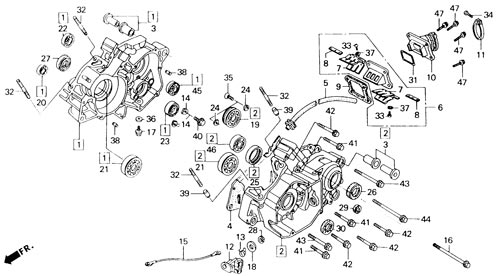

E-6 CRANKCASE

E-6 CRANKCASE
NO Part No Description Reqd No PRICE NOTES
93 94
1 11010-NF4-650 CRANKCASE ASSY R 1 1 ¥28,700 -
2 11011-NF4-650 CRANKCASE ASSY L 1 1 ¥20,600 -
3 11012-NF4-750 BUSH SET REAR ENGINE MOUNT 2 2 ¥2,910 -
4 11191-NF4-650 GASKET CRANKCASE 1 1 ¥700 -
5 11211-GC4-701 TUBU BREATHER 1 1 ¥300 -
6 14100-NF4-611 REED VALVE ASSY 1 1 ¥5,800 -
7 14111-NF4-780 REED VALVE ONLY 2 2 ¥380 -
8 14122-NF4-611 SPACER REED VALVE 2 2 ¥150 -
9 14132-NF4-651 GASKET REED VALVE 1 1 ¥170 -
10 16220-NF4-780 INSULATOR CARBURETOR 1 - ¥3,740 -
　 16220-NF4-900 INSULATOR CARBURETOR - 1 ¥3,740 -
11 16223-KA5-690 BAND INSULATOR 1 1 ¥450 -
12 22810-KS6-700 LIFTER COMP CLUTCH 1 1 ¥2,300 -
13 22815-KS6-700 SPRING CLUTCH LEVER 1 1 ¥95 -
14 23521-KW3-000 PLATE A BEARING SET 2 2 ¥135 　
15 32120-NF4-900 HARNESS SUB EARTH 1 1 ¥260 It sold
16 90001-NF4-650 BOLT FLANGE SH 6*85 1 1 ¥110 -
17 90081-NC2-000 ( 90081-NX4-000 ) - -

-

 It changed
　 90081-NX4-000 BOLT DRAIN 12mm 1 1 ¥130 -
18 90401-430-000 WASHER 10.2mm 1 1 ¥105 -
19 91001-KA3-711 BEARING BALL 6204 1 1 ¥670 -
20 91002-KA4-003 ( 91002-KA4-005 ) - -

-

 It changed
　 91002-KA4-005 BEARING BALL 7*19*6 1 1 ¥460 -
21 04103-NF4-305 BEARING BALL RADIAL 63/22 2 2 ¥1,050 -
22 91004-GF9-003 BEARING BALL RADIAL 6004 1 1 ¥620 -
23 91004-430-003 BEARING BALL RADIAL 6905Z 1 1 ¥810 -
24 91012-KA3-710 PLATE COUNTERSHAFT BEARING 2 2 ¥140 -
25 91022-KA4-740 BEARING SHELL 33*38*8 1 1 ¥620 -
26 91201-KS6-004 OIL-SEAL 26*37*7 1 1 ¥380 -
27 91201-NF4-781 OIL-SEAL 30*45*9 1 1 ¥740 -
28 91202-KA3-712 ( 91202-KA3-711 ) - -

-

 It changed
　 91202-KA3-711 OIL-SEAL 10*17*4 1 1 ¥185 -
29 91203-KK3-830 OIL-SEAL 14*22*5 1 1 ¥120 -
30 91205-166-004 OIL-SEAL 20*32*7 1 1 ¥470 -
