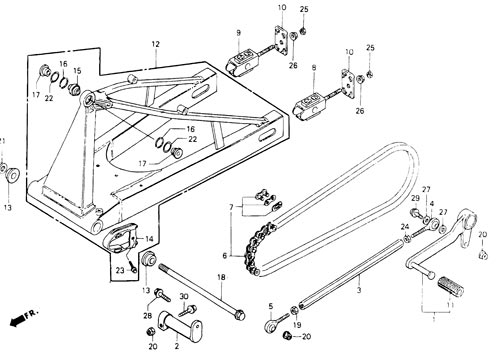

F-11 CHANGE PEDAL/REAR FORK
|
|
F-11 CHANGE PEDAL/REAR FORK
|
| NO |
Part No |
Description |
Reqd No |
PRICE |
NOTES |
| 93 |
94 |
| 1 |
24700-NF4-780 |
PEDAL COMP., CHANGE |
1 |
1 |
¥9,780 |
- |
| 2 |
24702-NF4-770 |
ARM, GEAR CHANGE |
1 |
1 |
¥3,070 |
- |
| 3 |
24706-NF4-760 |
ROD,CHANGE 230 |
1 |
1 |
¥1,770 |
- |
| 4 |
24711-NC8-000 |
ROD END,6mm A |
1 |
1 |
¥1,140 |
- |
| 5 |
24712-NC8-000 |
ROD END,6mm B |
1 |
1 |
¥1,140 |
- |
| 6
|
40530-NF4-611 |
CHAIN, DRIVE (RK 415HR*118RJ) |
1 |
1 |
¥7,180 |
- |
|
|
40530-NF4-632 |
CHAIN, DRIVE (DID 415ER*118RB) |
[1] |
[1] |
¥7,180 |
- |
|
|
40532-NF4-611 |
CHAIN, DRIVE (RK 415ER*112RJ) |
[1] |
[1] |
¥7,180 |
- |
|
|
40533-NF4-611 |
CHAIN, DRIVE (RK 415ER*114RJ) |
[1] |
[1] |
¥7,180 |
- |
|
|
40534-NF4-611 |
CHAIN, DRIVE (RK 415ER*116RJ) |
[1] |
[1] |
¥7,180 |
- |
|
|
40535-NF4-611 |
CHAIN, DRIVE (RK 415ER*120RJ) |
[1] |
[1] |
¥7,180 |
- |
|
|
40535-NF4-632 |
CHAIN, DRIVE (DID 415ER*120RB) |
[1] |
[1] |
¥7,180 |
- |
| 7 |
40531-NF4-611 |
JOINT SET, DRIVE CHAIN (KR 415HR) |
1 |
1 |
¥210 |
- |
| |
40531-NF4-632 |
JOINT SET, DRIVE CHAIN (DID 415ER) |
[1] |
[1] |
¥210 |
- |
| 8 |
40543-KJ1-700 |
ADJUSTER, CHAIN |
1 |
1 |
¥940 |
- |
| 9 |
40543-NF4-000 |
ADJUSTER, CHAIN RH (18) |
1 |
1 |
¥1,040 |
- |
| 10 |
40544-KJ1-700 |
RETAINER, CHAIN ADJUSTER |
2 |
2 |
¥740 |
- |
| 11 |
46501-ND4-750 |
RUBBER, PEDAL |
1 |
1 |
¥380 |
- |
| 12 |
52100-NF4-780 |
FORK ASSY., REAR |
1 |
1 |
¥43,300 |
- |
| 13 |
52146-NF4-000 |
COLLAR, REAR FORK PIVOT |
2 |
2 |
¥420 |
- |
| 14 |
52170-NF4-770 |
SLIDER, CHAIN |
1 |
1 |
¥1,860 |
- |
| 15 |
52422-NF5-952 |
BEARING, SPHERICAL |
1 |
1 |
¥2,030 |
- |
| 16 |
52469-NC8-000 |
SNAP, RING, 22mm |
2 |
2 |
¥30 |
- |
| 17 |
52486-ND9-000 |
COLLAR, CUSHION |
2 |
2 |
¥720 |
- |
| 18 |
90121-NF4-003 |
AXLE, REAR FORK PIVOT |
1 |
1 |
¥3,220 |
- |
| 19 |
90201-KV3-700 |
NUT, TIE-ROD B |
1 |
1 |
¥75 |
- |
| 20 |
90301-473-003 |
NUT, U,6mm |
3 |
3 |
¥210 |
- |
| 21 |
90305-MC0-003 |
NUT, U,16mm |
1 |
1 |
¥275 |
- |
| 22 |
91351-KB7-003 |
SEAL B,DUST |
2 |
2 |
¥105 |
- |
| 23 |
93404-06020-00 |
BOLT WASHER, 6*20 |
1 |
1 |
¥35 |
- |
| 24 |
94001-06200-0S |
NUT, HEX,6mm |
1 |
1 |
¥30 |
- |
| 25 |
94002-08000-0S |
NUT, HEX,8mm |
2 |
2 |
¥30 |
- |
| 26 |
94050-08000 |
NUT, FLANGE, 8mm |
2 |
2 |
¥35 |
- |
| 27 |
94101-06000 |
WASHER, PLAIN, 6mm |
2 |
2 |
¥25 |
- |
| 28 |
95801-06022-00 |
(95701-06022-00 ) |
- |
- |
- |
It changed |
| |
95701-06022-00 |
BOLT, FLANGE,6*22 |
1 |
1 |
¥40 |
- |
| 29 |
95801-06025-00 |
BOLT, FLANGE,6*25 |
1 |
1 |
¥40 |
- |
| 30 |
96001-06028-00 |
BOLT, FLANGE, SH, 6*28 |
1 |
1 |
¥50 |
- |
|
