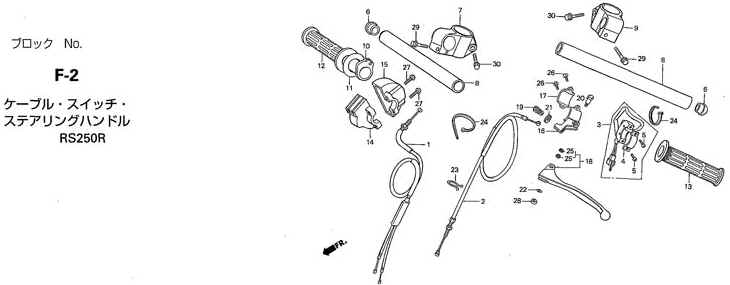

F-2 CABLE / SWITCH / HANDLEBAR |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
17910-NXA-000 |
CABLE COMP., THROTTLE |
1 |
1 |
1,600 |
|
| 2 |
22870-NX5-000 |
CABLE COMP., CLUTCH |
1 |
1 |
1,400 |
|
| 3 |
35130-NX5-000 |
SWITCH ASSY., ENGINE STOP |
1 |
1 |
1,400 |
|
| 4 |
35132-KR5-013 |
PLATE, SET |
1 |
1 |
155 |
|
| 5 |
35133-KJ2-003 |
SCREW, PAN, 4*12 |
2 |
2 |
80 |
|
| 6 |
53105-NF4-770 |
CAP, HANDLE PIPE |
2 |
2 |
340 |
|
| 7 |
53110-NXA-000 |
HOLDER, R. HANDLE |
1 |
1 |
8,900 |
|
| 8 |
53111-NX4-000 |
HANDLEBAR |
2 |
2 |
1,950 |
|
| 9 |
53120-NXA-000 |
HOLDER, L. HANDLE |
1 |
1 |
8,900 |
|
| 10 |
53141-NX5-770 |
PIPE, THROTTLE GRIP |
1 |
1 |
990 |
|
| 11 |
53142-NX5-770 |
RING LEAF |
1 |
1 |
90 |
|
| 12 |
53165-ML7-010 |
GRIP, R. HANDLE |
1 |
1 |
560 |
|
| 13 |
53166-ML7-000 |
GRIP, L. HANDLE |
1 |
1 |
560 |
|
| 14 |
53167-NX5-950 |
HOUSING, A GRIP |
1 |
1 |
1,680 |
|
| 15 |
53168-NX5-950 |
HOUSING, B GRIP |
1 |
1 |
1,780 |
|
| 16 |
53172-430-003 |
BRACKET, L. HANDLE LEVER |
1 |
1 |
2,160 |
|
| 17 |
53173-376-000 |
HOLDER, LEVER BRACKET |
1 |
1 |
630 |
|
| 18 |
53178-NX5-680 |
LEVER, L. STEERING HANDLE |
1 |
1 |
2,350 |
|
| 19 |
53192-KA4-710 |
BOLT, WIRE ADJUST |
1 |
1 |
410 |
|
| 20 |
90114-NX5-680 |
BOLT, LEVER PIVOT |
1 |
1 |
550 |
|
| 21 |
90321-KF0-000 |
NUT, FIXING |
1 |
1 |
410 |
|
| 22 |
90501-NX5-680 |
COLLAR, 6*8.5*1.2 |
1 |
1 |
450 |
|
| 23 |
90659-MR5-000 |
CLIP HARNESS |
1 |
1 |
55 |
|
| 24 |
91058-MG9-681 |
BAND, SELF LOCK |
2 |
2 |
120 |
|
| 25 |
91058-NX6-801 |
BEARING, BALL RADIAL 6*10*2.5 |
2 |
2 |
700 |
|
| 26 |
93500-05016-0A |
SCREW, PAN, 5*16 |
2 |
2 |
25 |
|
| 27 |
93500-05020-0G |
SCREW, PAN, 5*20 |
2 |
2 |
25 |
|
| 28 |
94001-06000-0S |
NUT, HEX. 6mm |
1 |
1 |
30 |
|
| 29 |
96001-06022-00 |
BOLT, FLANGE, SH, 6*22 |
2 |
2 |
50 |
|
| 30 |
96500-08035-00 |
BOLT, FLANGE, DR, 8*35 |
2 |
2 |
55 |
|
|
