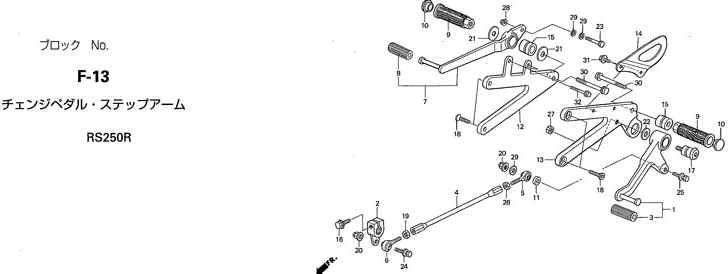

F-13 GEARSHIFT PEDAL /
FOOTPEG (CHANGE PEDAL /STEP ARM) |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
24700-NXA-000 |
PEDAL ASSY., CHANGE |
1 |
1 |
8,600 |
|
| 2 |
24702-NXA-000 |
ARM, GEAR CHANGE |
1 |
1 |
3,200 |
|
| 3 |
24705-MR7-000 |
RUBBER, PEDAL |
1 |
1 |
185 |
|
| 4 |
24706-NXA-000 |
ROD, CHANGE |
1 |
1 |
1,000 |
|
| 5 |
54711-NX4-710 |
ROD END, 6mm,A |
1 |
1 |
1,140 |
|
| 6 |
24712-NX4-710 |
ROD END, 6mm,B |
1 |
1 |
1,140 |
|
| 7 |
46500-NX5-000 |
PEDAL ASSY., BRAKE |
1 |
1 |
9,500 |
|
| 8 |
46501-ND4-750 |
RUBBER, PEDAL |
1 |
1 |
380 |
|
| 9 |
50610-NL5-760 |
ARM, STEP |
2 |
2 |
1,700 |
|
| 10 |
50612-NL5-760 |
END, STEP ARM |
2 |
2 |
440 |
|
| 11 |
50618-KE8-000 |
COLLAR 6.5*11*3 |
1 |
1 |
120 |
|
| 12 |
50630-NXA-000 |
HOLDER, R. STEP |
1 |
1 |
6,800 |
|
| 13 |
50640-NXA-000 |
HOLDER, L STEP |
1 |
1 |
6,800 |
|
| 14 |
50641-NF5-950 |
PLATE, FOOT GUARD |
1 |
1 |
2,700 |
|
| 15 |
50643-NL5-760 |
COLLAR 16*8.2 |
2 |
2 |
530 |
|
| 16 |
90003-MC7-000 |
BOLT, FLANGE, 6*20 |
1 |
1 |
170 |
|
| 17 |
90113-MCF-000 |
BOLT, CHANGE POVOT |
1 |
1 |
400 |
|
| 18 |
90178-NC8-000 |
BOLT 8*22 |
4 |
4 |
300 |
|
| 19 |
90201-KV3-700 |
NUT, TIE-ROD B |
1 |
1 |
80 |
|
| 20 |
90301-473-003 |
NUT, U, 6mm |
2 |
2 |
220 |
|
| 21 |
90504-MA6-000 |
WASHER 8.5*26 |
2 |
2 |
115 |
|
| 22 |
90524-MCF-000 |
WASHER, CHANGE PEDAL PIVOT |
1 |
1 |
155 |
|
| 23 |
92101-06025-0A |
BOLT, HEX, 6*25 |
1 |
1 |
35 |
|
| 24 |
93401-06025-00 |
BOLT WASHER, 6*25 |
1 |
1 |
40 |
|
| 25 |
93401-06028-00 |
BOLT WASHER, 6*28 |
1 |
1 |
40 |
|
| 26 |
94001-06200-0S |
NUT, HEX, 6mm |
1 |
1 |
30 |
|
| 27 |
94002-08000-0S |
NUT, HEX, 8mm |
1 |
1 |
30 |
|
| 28 |
94050-06000 |
NUT, FLANGE, 6mm |
1 |
1 |
30 |
|
| 29 |
94101-06000 |
WASHER, PLAIN, 6mm |
3 |
3 |
25 |
|
| 30 |
95801-08040-00 |
BOLT, FLANGE, 8*40 |
2 |
2 |
50 |
|
| 31 |
96500-06010-00 |
BOLT, FLANGE, D,6*10 |
2 |
2 |
40 |
|
| 32 |
96500-06020-00 |
BOLT, FLANGE, D,6*20 |
2 |
2 |
40
|
|
|
