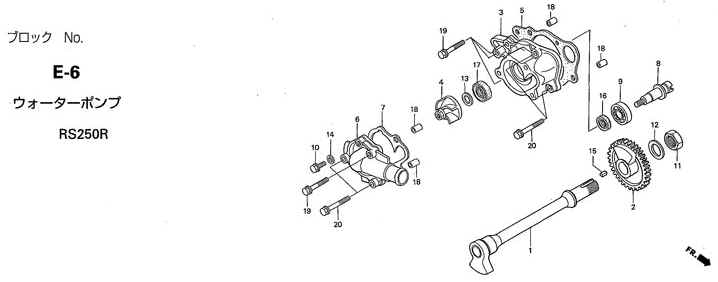

| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
13420-NXA-000 |
SHAFT COMP., BALANCER |
1 |
1 |
17,000 |
|
| 2 |
13426-NXA-000 |
GEAR, BALANCER DRIVEN |
1 |
1 |
8,700 |
|
| 3 |
19210-NXA-000 |
BODY, WATER PUMP |
1 |
1 |
9,000 |
|
| 4 |
19215-KA5-690 |
IMPELLER, WATER PUMP |
1 |
1 |
1,530 |
|
| 5 |
19219-NXA-003 |
GASKET, WATER PUMP BODY |
1 |
1 |
150 |
|
| 6 |
19220-NX5-000 |
COVER, WATER PUMP |
1 |
1 |
10,800 |
|
| 7 |
19229-NX5-003 |
GASKET, EATER PUMP COVER |
1 |
1 |
170 |
|
| 8 |
19233-NX5-700 |
SHAFT, WATER PUMP |
1 |
1 |
1,500 |
|
| 9 |
50814-GZ5-003 |
BEARING, BALL, RADIAL, 6001 |
1 |
1 |
480 |
|
| 10 |
90037-NX5-000 |
BOLT, WATER CHECK, 6*10 |
1 |
1 |
260 |
|
| 11 |
90301-HA7-670 |
NUT, LOCK, 20mm |
1 |
1 |
330 |
|
| 12 |
90432-121-000 |
WASHER, LOCK |
1 |
1 |
145 |
|
| 13 |
90447-KE1-000 |
WASHER, SEALING, 7mm |
1 |
1 |
95 |
|
| 14 |
90543-273-000 |
PACKING, FRONT FORK DRAIN VALVE |
1 |
1 |
95 |
|
| 15 |
90702-KAE-000 |
KEY, 4*5*10 |
1 |
1 |
145 |
|
| 16 |
91201-965-000 |
OIL SEAL, 12*22*5 |
1 |
1 |
195 |
|
| 17 |
91211-KA3-761 |
SEAL, WATER PUMP |
1 |
1 |
255 |
|
| 18 |
94301-08100 |
DOWEL PIN, 8*10 |
4 |
4 |
60 |
|
| 19 |
96001-06028-00 |
BOLT, FLANGE, SH, 6*28 |
4 |
4 |
50 |
|
| 20 |
96001-06032-00 |
BOLT, FLANGE, SH, 6*32 |
4 |
4 |
50 |
|
|
