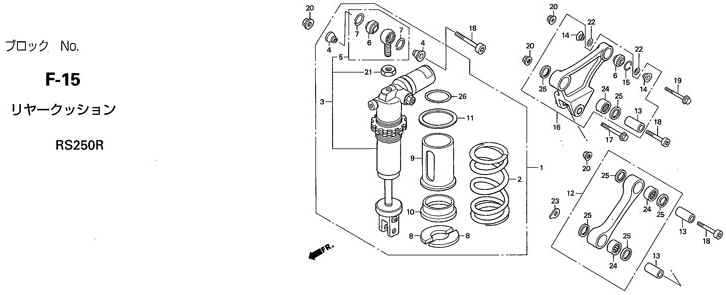

F-15 SHOCK ABSORBER
(REAR CUSHION) |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
52400-NXA-601 |
CUSHION ASSY., REAR |
1 |
- |
54,000 |
|
| |
52400-NXA-621 |
CUSHION ASSY., REAR |
- |
1 |
54,000 |
|
| 2 |
52401-NXA-003 |
SPRING, REAR CUSHION |
1 |
(1) |
14,500 |
K=7.0 |
| |
52402-NXA-003 |
SPRING, REAR CUSHION (SOFT) |
(1) |
1 |
14,500 |
K=6.5 |
| |
52403-NXA-003 |
SPRING, REAR CUSHION (HARD) |
(1) |
(1) |
14,500 |
K=7.5 |
| |
52404-NXA-611 |
SPRING, REAR CUSHION (SOFT2) |
(1) |
(1) |
14,500 |
K=6.0 |
| 3 |
52410-NXA-003 |
DAMPER COMO., REAR |
1 |
- |
48,000 |
|
| |
52410-NXA-611 |
DAMPER COMO., REAR |
- |
1 |
48,000 |
|
| 4 |
52411-NF5-951 |
COLLAR, DAMPER., UPPER |
2 |
2 |
580 |
|
| 5 |
52420-NX4-003 |
JOINT COMP., UPPER |
1 |
1 |
3,850 |
|
| 6 |
52422-NF5-952 |
BEARING, SPHERICAL |
2 |
2 |
2,030 |
|
| 7 |
52424-GC4-831 |
RING, STOPPER |
2 |
2 |
115 |
|
| 8 |
52424-KAF-901 |
STOPPER, SPRING SEAT |
2 |
2 |
580 |
|
| 9 |
52458-NXA-003 |
GUIDE, SPRING |
1 |
1 |
5,000 |
|
| 10 |
52459-ML7-691 |
SEAT, SPRING |
1 |
1 |
1,050 |
|
| 11 |
52459-NXA-003 |
SEAT, SPRING |
1 |
1 |
1,000 |
|
| 12 |
52460-NXA-000 |
ROD ASSY., CUSHION |
1 |
1 |
15,000 |
|
| 13 |
52465-NX4-000 |
COLLAR, CUSHION ARM |
3 |
3 |
350 |
|
| 14 |
52468-NF5-000 |
COLLAR, TENSION ROD |
2 |
2 |
680 |
|
| 15 |
52469-NC8-000 |
SNAP, RING, 22mm |
1 |
1 |
30 |
|
| 16 |
52470-NXA-000 |
ARM ASSY., CUSHION |
1 |
1 |
18,000 |
|
| 17 |
90102-NF5-000 |
BOLT, FLANGE, 10*50 |
1 |
1 |
210 |
|
| 18 |
90110-ML7-000 |
BOLT, SOCKET, 10*55 |
3 |
3 |
160 |
|
| 19 |
90153-HA8-000 |
BOLT, FLANGE, 10*47 |
1 |
1 |
270 |
|
| 20 |
90304-GA6-003 |
NUT, AXLE |
4 |
4 |
135 |
|
| 21 |
90306-NF5-951 |
NUT, LOCK, 16mm |
1 |
1 |
1,230 |
|
| 22 |
90501-ND5-750 |
WASHER 12*16*0.1 |
N |
N |
150 |
|
| 23 |
90510-NX4-000 |
SHIM, ENGINE MOUNT, 0.2 |
N |
N |
560 |
|
| 24 |
91071-MY1-005 |
BEARING, NEEDLE, 17*24*17 |
3 |
3 |
470 |
|
| 25 |
91262-KV3-831 |
DUST SEAL, 17*24*5 |
6 |
6 |
205 |
|
| 26 |
91359-NXA-003 |
O-RING, 49.7-2.4 |
1 |
1 |
350 |
|
|
