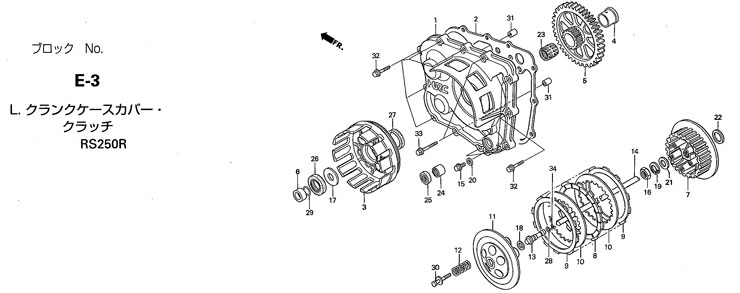

E-3 L. CRANKCASE COVER/CLUTCH |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
11340-NXA-000 |
COVER, L. CRANKCASE |
1 |
1 |
21,000 |
|
| 2 |
11395-NXA-000 |
GASKET, L. COVER |
1 |
1 |
500 |
|
| 3 |
22100-NX5-680 |
OUTER COMP., CLUTCH |
1 |
1 |
21,500 |
|
| 4 |
22106-NXA-000 |
COLLAR, CLUTCH OUTER |
1 |
1 |
660 |
|
| 5 |
22111-NX5-000 |
GEAR, 56T, PRIMARY DRIVEN |
(1) |
(1) |
12,300 |
|
| |
22112-NX5-000 |
GEAR, 57T, PRIMARY DRIVEN |
(1) |
(1) |
12,300 |
|
| |
22113-NX5-000 |
GEAR, 58T, PRIMARY DRIVEN |
1 |
1 |
12,300 |
|
| 6 |
22117-NX5-000 |
COLLAR, 22*30*10.2 |
1 |
1 |
600 |
|
| 7 |
22120-NX5-680 |
CENTER, CLUTCH |
1 |
1 |
4,800 |
|
| 8 |
22201-NX5-003 |
DISK, CLUTCH FRICTION |
4 |
4 |
1,350 |
|
| 9 |
22202-NX5-000 |
DISK, CLUTCH FRICTION |
2 |
2 |
1,350 |
|
| 10 |
22321-MM9-000 |
PLATE, CLUTCH |
5 |
5 |
390 |
|
| 11 |
22351-NX5-680 |
PLATE CLUTCH PRESSURE |
1 |
1 |
2,400 |
|
| 12 |
22401-KA5-740 |
SPRING, CLUTCH |
5 |
5 |
240 |
|
| 13 |
22841-ND5-750 |
PIECE, LIFTER JOINT |
1 |
1 |
2,180 |
|
| 14 |
22850-NX5-700 |
ROD, CLUTCH LIFTER |
1 |
1 |
2,240 |
|
| 15 |
90081-NF5-000 |
BOLT, DRAIN, 10mm |
1 |
1 |
130 |
|
| 16 |
90235-MN1-670 |
NUT, 18mm |
1 |
1 |
225 |
|
| 17 |
90402-ND5-750 |
WASHER, THRUST, 22*45.5*2 |
1 |
1 |
500 |
|
| 18 |
90411-NF5-760 |
WASHER, SHIM 1.0 |
N |
N |
160 |
|
| |
90412-NF5-760 |
WASHER, SHIM 1.4 |
N |
N |
160 |
|
| |
90413-NF5-760 |
WASHER, SHIM 1.8 |
N |
N |
160 |
|
| |
90414-NF5-760 |
WASHER, SHIM 2.2 |
N |
N |
160 |
|
| 19 |
90432-428-000 |
WASHER, LOCK |
1 |
1 |
285 |
|
| 20 |
90443-MB0-000 |
WASHER, SEALING, 10mm |
1 |
1 |
105 |
|
| 21 |
90456-KA4-000 |
WASHER, THRUST 18*32 |
1 |
1 |
160 |
|
| 22 |
90456-425-000 |
WASHER A, THRUST 22mm |
1 |
1 |
245 |
|
| 23 |
91021-ML3-003 |
BEARING, NEEDLE 28*32*27.2 |
1 |
1 |
720 |
|
| 24 |
91101-1212-691 |
BEARING, NEEDLE (7E-HK1412) |
1 |
1 |
770 |
|
| 25 |
91203-KK3-830 |
OIL SEAL, 14*22*5 |
1 |
1 |
130 |
|
| 26 |
91264-415-003 |
OIL SEAL, 30*47*7 |
1 |
1 |
520 |
|
| 27 |
91271-MB0-013 |
OIL SEAL, 47*56*7 |
1 |
1 |
430 |
|
| 28 |
91306-HB3-003 |
O-RING, 8*1.7 |
1 |
1 |
105 |
|
| 29 |
91359-415-300 |
O-RING, 22*1.7 |
1 |
1 |
175 |
|
| 30 |
93404-06020-08 |
BOLT-WASHER, 6*20 |
5 |
5 |
35 |
|
| 31 |
94301-08100 |
DOWEL PIN, 8*10 |
2 |
2 |
60 |
|
| 32 |
96001-06025-00 |
BOLT, FLANGE, SH, 6*25 |
9 |
9 |
50 |
|
| 33 |
96001-06032-00 |
BOLT, FLANGE, SH, 6*32 |
2 |
2 |
50 |
|
| 34 |
96211-06000 |
BALL, STEEL, 6 |
3 |
3 |
10 |
|
|
