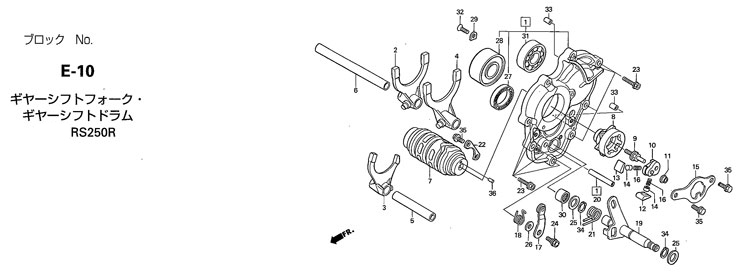

E-10 GEARSHIFT FORK/GEARSHIFT DRUM |
E-10 GEARSHIFT FORK/GEARSHIFT DRUM |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
 |
11130-NXA-000 |
HOLDER COMP., TRANSMISSION BEARING |
1 |
1 |
25,000 |
|
| 2 |
24211-NXA-000 |
FORK, R. GEAR SHIFT |
1 |
1 |
3,890 |
|
| 3 |
24221-NXA-000 |
FORK, C. GEAR SHIFT |
1 |
1 |
3,890 |
|
| 4 |
24231-NXA-000 |
FORK, L. GEAR SHIFT |
1 |
1 |
3,890 |
|
| 5 |
24265-KA3-760 |
SHAFT, SHIFT FORK M |
1 |
1 |
610 |
|
| 6 |
24266-NX5-000 |
SHAFT C, SHIFT FORK |
1 |
1 |
500 |
|
| 7 |
24311-NXA-000 |
DRUM, REAR SHIFT |
1 |
1 |
5,900 |
DOWN増速 |
| |
24311-NXA-800 |
DRUM, REAR SHIFT |
(1) |
(1) |
8,500 |
UP増速 |
| 8 |
24312-NX5-000 |
CENTER, SHIFT DRUM |
1 |
1 |
2,910 |
|
| 9 |
24315-HA0-000 |
PIN, SHIFTER |
1 |
1 |
350 |
|
| 10 |
24321-KW6-902 |
SHIFTER, DRUM |
1 |
1 |
1,840 |
|
| 11 |
24322-HA0-000 |
COLLAR, SHIFTER |
1 |
1 |
195 |
|
| 12 |
24324-KA3-711 |
PAWL A, RACHET |
1 |
1 |
360 |
|
| 13 |
24325-KA3-711 |
PAWL B, RACHET |
1 |
1 |
360 |
|
| 14 |
24326-KBH-901 |
PLUNGER, PAWL |
2 |
2 |
275 |
|
| 15 |
24328-NX5-000 |
PLATE, GUIDE |
1 |
1 |
2,800 |
|
| 16 |
24329-KA3-740 |
SPRING, PAWL PLUNGER |
2 |
2 |
95 |
|
| 17 |
24430-KA3-740 |
STOPPER COMP., DRUM |
1 |
1 |
690 |
|
| 18 |
24435-KZ4-690 |
SPRING, DRUM STOPPER |
1 |
1 |
155 |
|
| 19 |
24610-NX5-000 |
SPINDLE COMP., GEAR SHIFT |
1 |
1 |
2,600 |
|
| 20 |
24615-NX5-003 |
PIN, SHIFT STOPPER |
1 |
1 |
550 |
|
| 21 |
24651-MW0-000 |
SPRING, SHIFT RETURN |
1 |
1 |
210 |
|
| 22 |
24655-KV3-000 |
PLATE, BEARING SET |
1 |
1 |
360 |
|
| 23 |
90004-GHB-680 |
BOLT, FLANGE, NSHF, 6*28 |
8 |
8 |
95 |
|
| 24 |
90022-MG8-000 |
PIVOT, SHIFT DRUM STOPPER |
1 |
1 |
145 |
|
| 25 |
90428-958-000 |
WASHER, THRUST 14mmB |
2 |
2 |
165 |
|
| 26 |
90435-HB3-000 |
WASHER, 6.1mm |
1 |
1 |
110 |
|
| 27 |
91004-KY4-900 |
BEARING, BALL RADIAL, 6905U |
1 |
1 |
810 |
|
| 28 |
91011-NX5-000 |
BEARING, BALL 5205Z |
1 |
1 |
900 |
|
| 29 |
91012-KA3-710 |
PLATE, COUNTERSHAFT BEARING |
1 |
1 |
140 |
|
| 30 |
91101-121-691 |
BEARING, NEEDLE, (7E-HK1412) |
1 |
1 |
770 |
|
| 31 |
91102-GE1-711 |
BEARING, RADIAL, 6204 |
1 |
1 |
660 |
|
| 32 |
93600-06012-0A |
SCREW, FLAT, 6*12 |
1 |
1 |
30 |
|
| 33 |
94303-08140 |
DOWEL PIN, 8*14 |
2 |
2 |
60 |
|
| 34 |
94510-14000 |
CIRCLIP, EXTERNAL |
2 |
2 |
30 |
|
| 35 |
96001-06014-00 |
BOLT, FLANGE, SH, 6*14 |
4 |
4 |
40 |
|
| 36 |
96220-40080 |
ROLLER, 4*8 |
1 |
1 |
15 |
|
|
