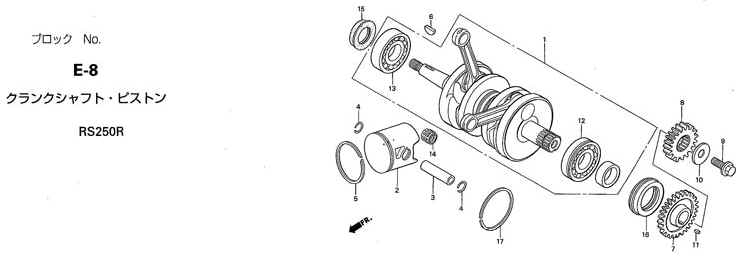

| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
13000-NX5-790 |
CRANKSHAFT COMP |
1 |
1 |
81,000 |
|
| 2 |
13100-NX5-790 |
PISTON COMP |
2 |
2 |
5,100 |
|
| 3 |
13111-KV3-000 |
PIN, PISTON |
2 |
2 |
730 |
|
| 4 |
13112-NX5-700 |
CLIP, PISTON PIN, 15mm |
4 |
4 |
70 |
|
| 5 |
13121-NX4-811 |
RING, PISTON |
2 |
2 |
1,260 |
|
| |
13121-NX5-701 |
RING, PISTON |
(2) |
- |
1,260 |
|
| 6 |
13331-360-000 |
KEY, SPECIAL, WOODRUFF 25*15 |
1 |
1 |
200 |
|
| 7 |
13415-NXA-000 |
GEAR, BALANCER DRIVE |
1 |
1 |
6,500 |
|
| 8 |
13615-NX5-710 |
GEAR, PRIMARY DRIVE |
1 |
1 |
4,680 |
|
| 9 |
90013-415-000 |
BOLT, UBS, 12*28 |
1 |
1 |
440 |
|
| 10 |
90402-MCL-000 |
WASHER, 12.5*34*5 |
1 |
1 |
300 |
|
| 11 |
90701-NX5-000 |
KEY, 4*4*7 |
1 |
1 |
150 |
|
| 12 |
91001-NX5-003 |
BEARING, BALL RADIAL, 6305L |
1 |
1 |
1,000 |
|
| 13 |
91003-NX5-003 |
BEARING, BALL RADIAL, 6305R |
1 |
1 |
1,000 |
|
| 14 |
91101-NX5-023 |
BEARING, CON-ROD SMALL END |
2 |
2 |
750 |
|
| 15 |
91201-KM4-003 |
OIL SEAL, 25*38*8 |
1 |
1 |
350 |
|
| 16 |
91202-NX5-771 |
OIL SEAL, 34*62*6 |
1 |
1 |
2,990 |
|
| 17 |
94560-62200 |
SNAP RING, 62mm |
1 |
1 |
105 |
|
|
